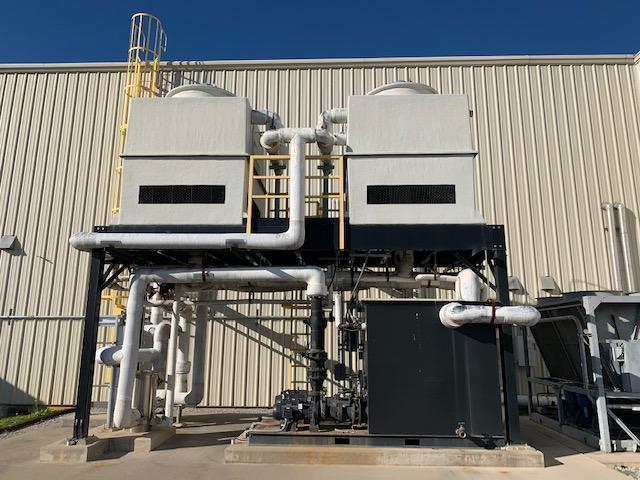

AEC Used FG2007 Cooling Tower (125 ton) and T1600D-25-25-10 Pump Tank Set, 460V, 2013

Stock #9107

2013

Request Quote

Specifications

Manufacturer AEC
Year 2013
Model FG2007 & T1600D-25-25-10
Voltage 460V
Cooling Capacity 125 ton
Cooling Tower:
    Make:    AEC
    Model:    FG2007 @ 125-tons each
    Year:    2013
    Voltage:    460/3/60
    QTY:    2
    Fan HP:    5
    Length:    82"
    Width:    82"
    Height:    121"
    Weight:    1,500 lbs
    Fiberglass reinforced polyester molded shell
    Designed for 78-deg ambient wet bulb temp
    85-deg leaving water temp
    95-deg entering water temp

Pump Tank:
    Make:    AEC
    Model:    T1600D-25-25-10
    Year:    2013
    # of Pumps:    3
    Process Pump:    25HP
    Stand-by Pump:    25HP
    Recirc Pump:    10HP
    Voltage:    460/3/60
    Capacity:    1,345 Gal
    Total Capacity:    1,550 Gal
    Construction:    Stainless Steel
    Length:    138"
    Width:    72"
    Height:    77"
    Weight:    4,000 lbs
    Dual Compartment
    Auto makeup valve
    Not Insulated

NEMA 12 Pump Tank Control Panel
460/3/60
Total Panel HP:    65HP
VFD for Process Pump

WF Stainless Steel WF750 SS Water Filter
Max GPM:    750
Basket Mesh:    40
Flange Connection    6"

WF Stainless Steel WF350 SS Water Filter
Max GPM:    350
Basket Mesh:    80
Flange Connection    4"

Plate and Frame Heat Exchanger
1,500,000 Btu's at 300 gpm
4" connection size
84 plates
Length:    45.8"
Width:    20.5"
Height:    72.5"
Weight:    1857 lbs

Offers for individual items will be considered
Equipment sold in current location.  Removal not included.  Rigging prices available upon request
